(ns the-force-the-notation-and-the-limitation
  (:refer-clojure :exclude [* / + -])
  (:require [munit.prefix :refer [k M]]
            [munit.si :refer [kg m s]]
            [munit.units :refer [* /]]
            [scicloj.kindly.v4.kind :as kind]))

(do
  ;; setup
  (set! *print-namespace-maps* false)
  (defn img [src] (kind/hiccup [:img {:style {:max-width "80vw"} :src src}]))
  (defmacro defshow
    "def, but also show the result in Clay"
    {:clj-kondo/lint-as 'clojure.core/def}
    [sym & body]
    `(do (def ~sym ~@body) ~sym)))

#'the-force-the-notation-and-the-limitation/defshow

(kind/hiccup
 [:div
  [:hr]
  [:h1 "The force, the notation and the limitation"]
  [:em "a tale of unit systems in three parts"]
  [:hr]
  [:ul
   [:li "Part 1: What is 17 MN, really?"]
   [:li "Part 2: A data notation for numbers with units."]
   [:li "Part 3: Layered operators?"]]])

The force, the notation and the limitation

• Part 1: What is 17 MN, really?
• Part 2: A data notation for numbers with units.
• Part 3: Layered operators?

PART 1

(kind/hiccup [:div [:h2 "The force: What is 17 MN, really?"]
              [:em "is it much?"]])

The force: What is 17 MN, really?

(img "https://parenteser.mattilsynet.io/images/b539436d879e/the-hub.jpg")

(def N [kg m {s -2}])

(defshow MN (* M N))

[1000000 kg m {s -2}]

(defshow F (* 17 MN))

[17000000 kg m {s -2}]

How many Volkswagen ID.4s must we stack to get a weight of 17 MN? Let's find out.

(def t (* 1000 kg))

(defshow vw-id4-mass (* 1.8 t {:cars/vw-id.4 -1}))

[1800.0 kg {:cars/vw-id.4 -1}]

"1.8 tonnes per volgswagen id 4"

First, we need to translate 1.8 tonnes (mass) into weight (newtons).

(def g "Approximate free-fall accelleration on earth's surface"
  [9.81 m {s -2}])

(defshow vw-id4-weight (* vw-id4-mass g))

[17658.0 kg m {:cars/vw-id.4 -1, s -2}]

Now, divide!

(defshow id4s (/ [17 MN] vw-id4-weight))

[962.736436742553 :cars/vw-id.4]

In other words - we must stack 962 Volkswagen ID.4s to get the same load.

PART 2

(kind/hiccup [:div [:h2 "The notation: Numbers with units as data"]
              [:em "numbers, symbols, keywords, maps and vectors"]])

The notation: Numbers with units as data

For HTML:

[:p "The force is " [:strong "17 MN"] "!"]

[:p "The force is " [:strong "17 MN"] "!"]

For HTTP:

{:request-method :get
 :uri "/the-force"}

{:request-method :get, :uri "/the-force"}

{:status 200
 :headers {"Content-Type" "text/plain"}
 :body "17 MN"}

{:status 200, :headers {"Content-Type" "text/plain"}, :body "17 MN"}

For numbers with units:

(def munit-examples
  [

   ;; plain numbers are unitless
   17 18 3.14 77

   ;; symbols and keywords are base units
   'm 's 'kg :cars/vw-id.4

   ;; vectors imply multiplication
   [17 MN] [40075.017 k m]

   ;; maps specify base unit exponents
   [9.81 'kg 'm {'s -2}]

   ])

PART 3

(kind/hiccup [:div [:h2 "The limitation: who owns the operator?"]
              [:em "... or can we have layered operators?"]])

The limitation: who owns the operator?

(def EUR 'EUR)

(def NOK 'NOK)

Currencies is a good match for units, right?

(def NOK-per-EUR-2025-07-25
  [11.8995 {NOK 1 EUR -1}])

43 EUR to NOK

(* [43 'EUR] NOK-per-EUR-2025-07-25)

[511.6785 NOK]

... buuut no! Not really!

I found I preferred Tablecloth datasets, array programming is just too useful. so ... are we stuck? *, /, +, - must be controlled by either munit or Tablecloth?

Not really.

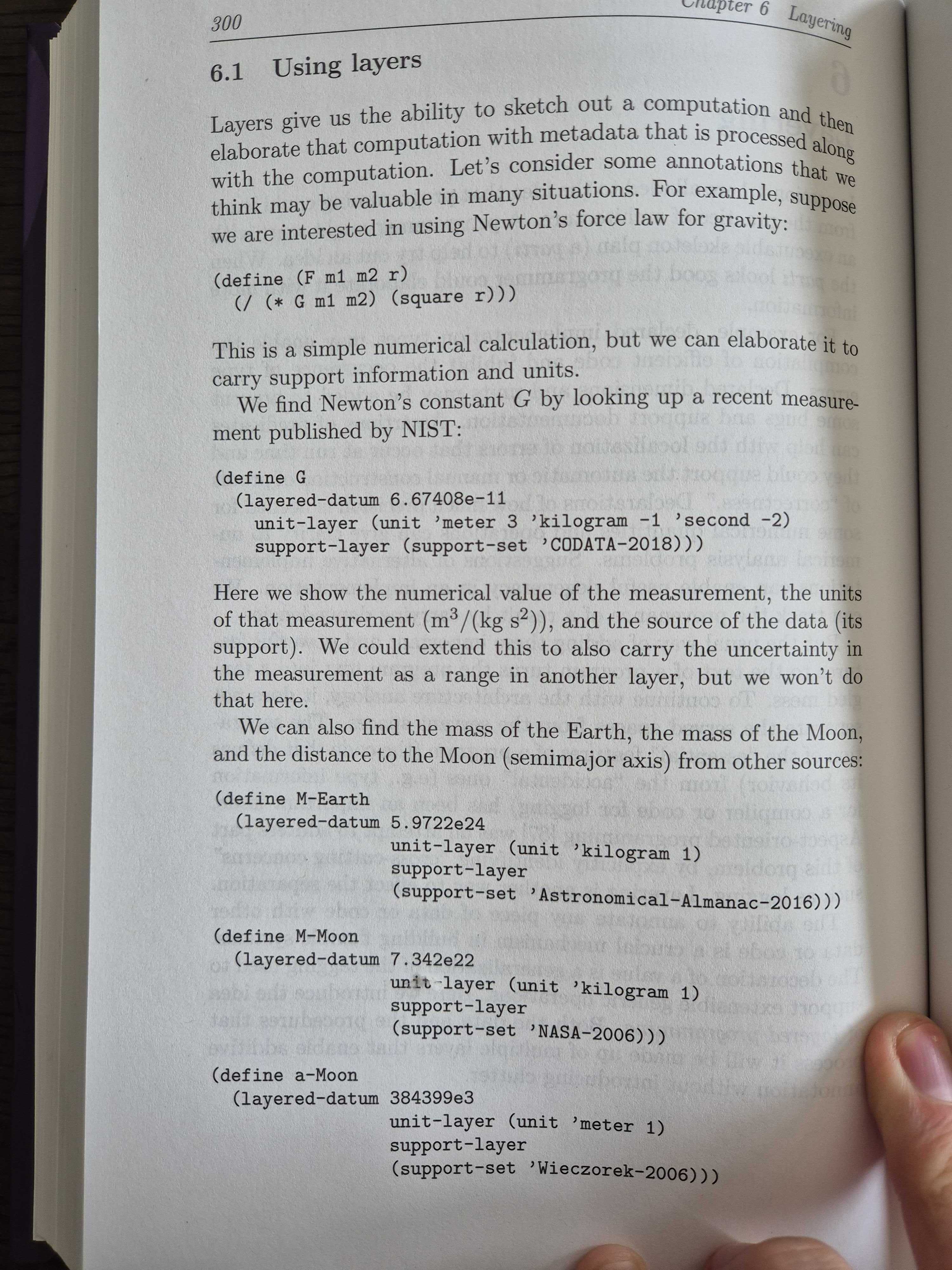

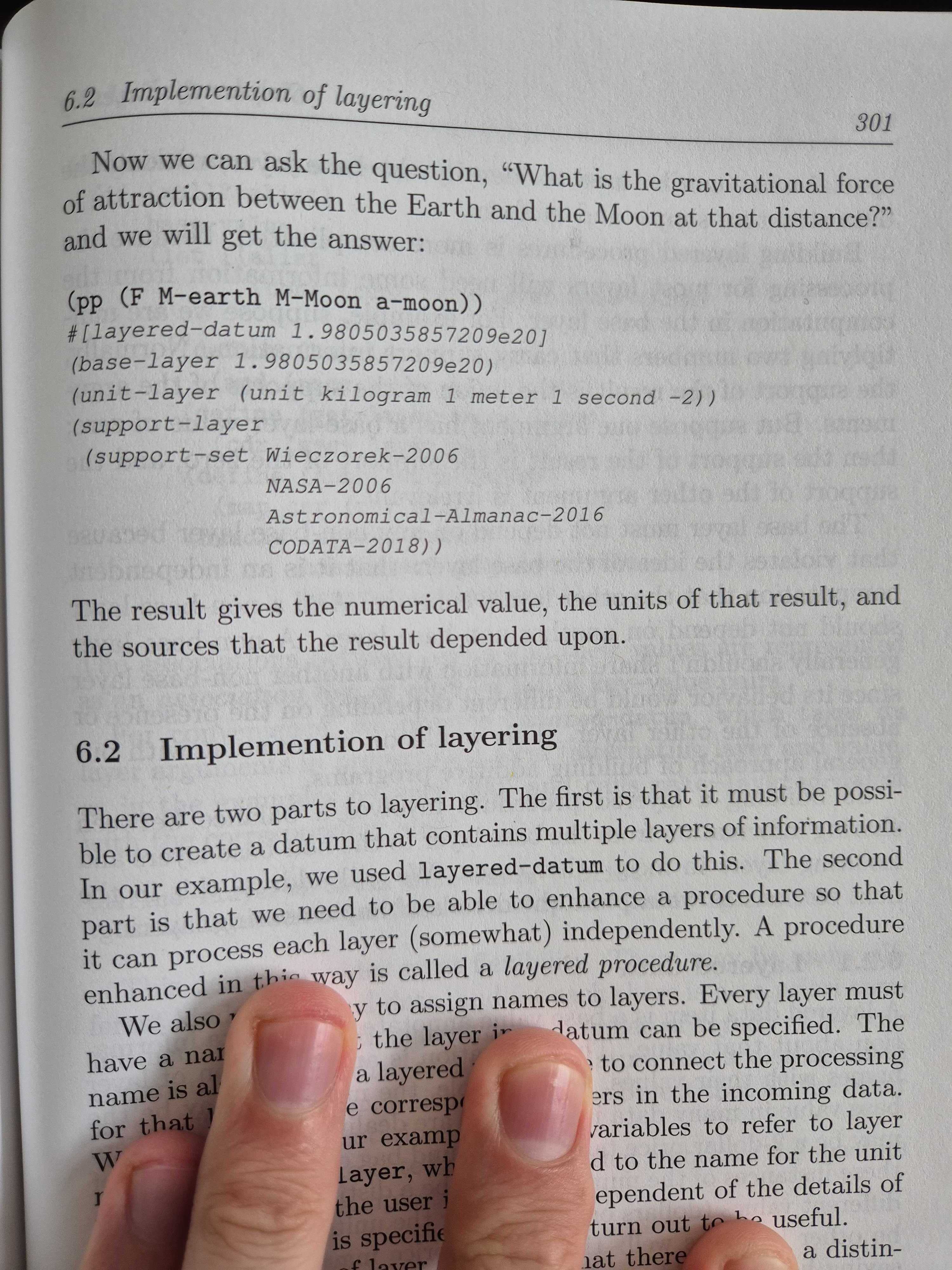

In Software Design for Flexibility (2021), Chris Hanson and Gerald Jay Sussman propose layered arithmetic.

Sneak peak:

(img "https://play.teod.eu/the-force-the-notation-and-the-limitation/sdf2.jpg")

(img "https://play.teod.eu/the-force-the-notation-and-the-limitation/sdf1.jpg")

Thank you :)

(comment
  ((requiring-resolve 'clojure.repl.deps/sync-deps))
  (require '[babashka.fs :as fs])

  ;; Publish HTML via Clay
  (def base-name (fs/strip-ext (fs/file-name *file*)))
  (def clay-html-file (fs/file "docs" (str base-name ".html")))
  (def clay-extras (fs/file "docs" (str base-name "_files")))

  (do (fs/delete-if-exists "index.html")
      (fs/copy clay-html-file "index.html")

      (fs/delete-tree (str base-name "_files"))
      (fs/copy-tree clay-extras (str base-name "_files")))

  (fs/exists? clay-html-file)
  (fs/exists? clay-extras)
  )

source: the-force-the-notation-and-the-limitation/the_force_the_notation_and_the_limitation.clj
